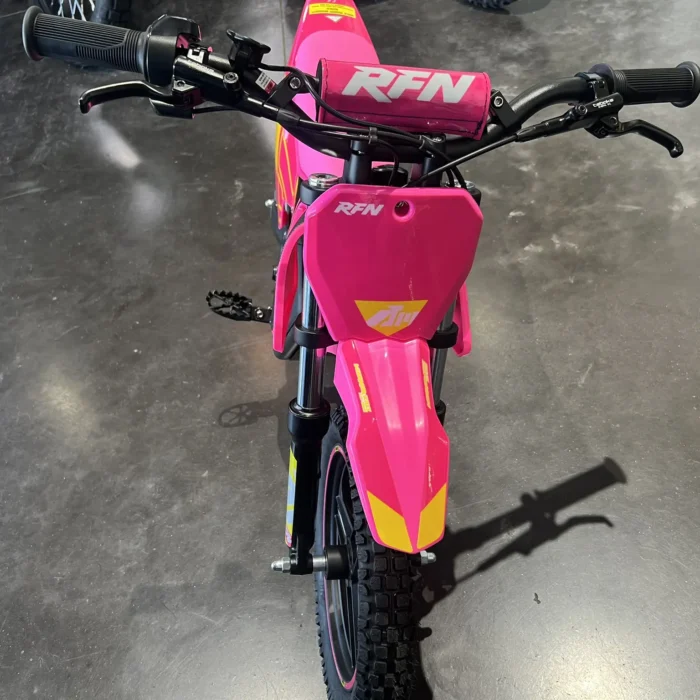

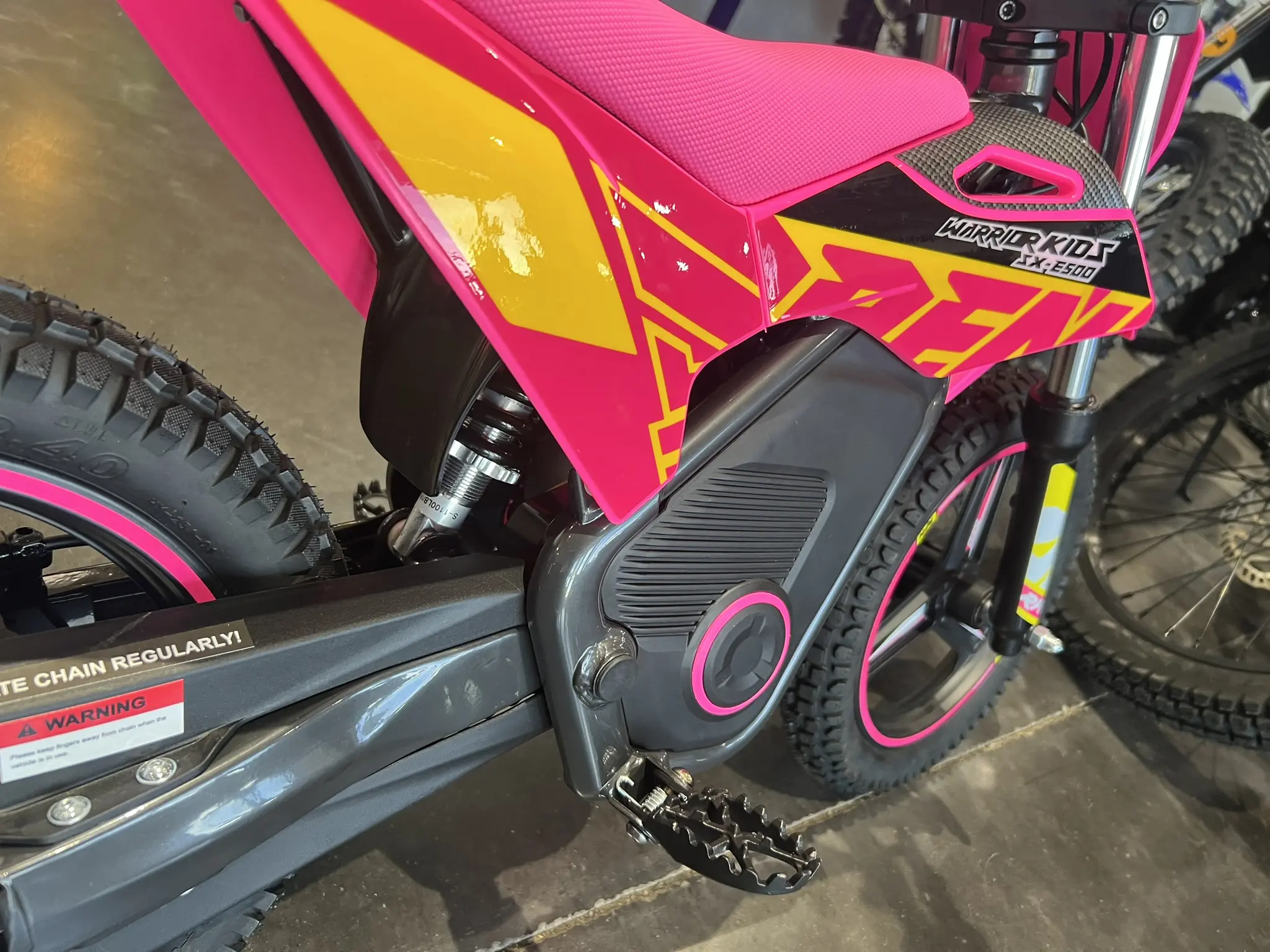

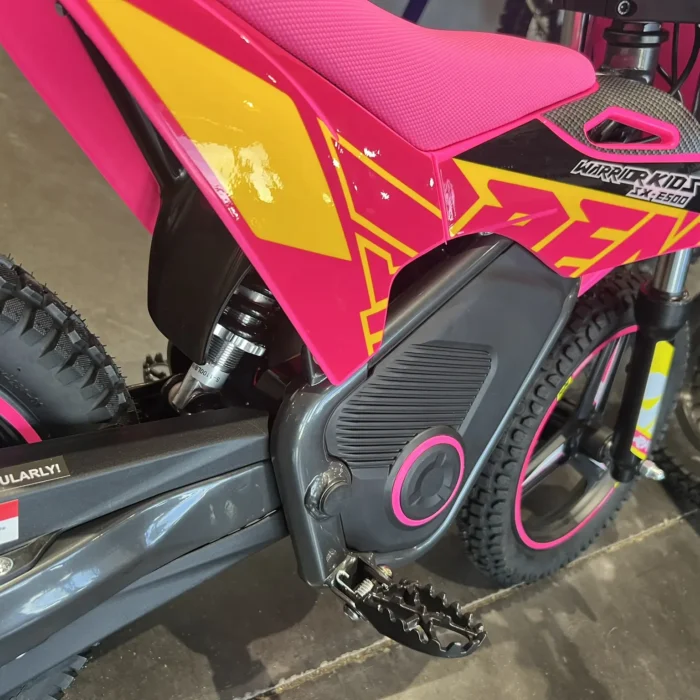

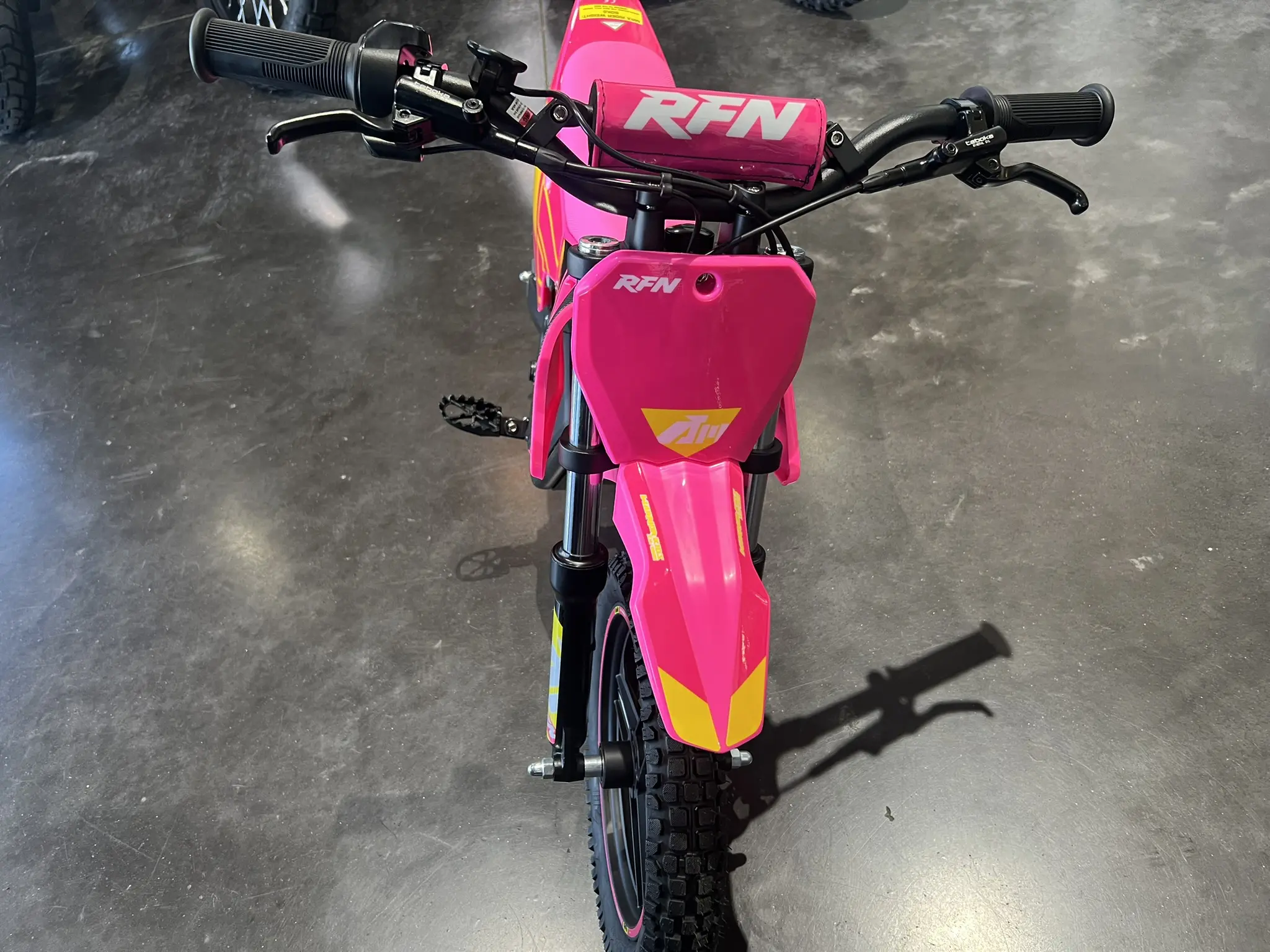

RFN Warrior Kids SX-E500

RFN Warrior Kids SX-E500 Key Specifications

Rider Height: ~39–47 in

Speed Modes: I / II / III

• Max Speed:

  • ~9.3 mph (15 km/h)

  • ~15.5 mph (25 km/h)

  • ~21.7 mph (35 km/h)

Battery: 36V 7.5Ah lithium battery
Motor: 36V 500W (≈ 0.67 horsepower)

Range: ~15.5 miles (25 km)

Brakes: Hydraulic disc brakes, front & rear

• Disc Diameter: ~5.5 in (140 mm)

Suspension / Damping:

• Front: Spring fork

• Rear: Adjustable damping shock absorber

Wheels:

• 14 in / 14 in, 2.4 in wide

• Aluminum-magnesium alloy bicycle wheels

Seat Height: ~19.3 in (490 mm)
Wheelbase: ~27.0 in (685 mm)

Handlebar:

• Diameter: ~0.87–0.75 in (Φ22–19 mm)

• Width: ~21.3 in (540 mm)

• Material: 6061 Aluminum

Vehicle Size (L × W × H):

• ~41.1 × 22.8 × 26.6 in (1044 × 578 × 676 mm)

Package Size:

• ~34.3 × 10.6 × 18.5 in (870 × 270 × 470 mm)

Weight:

• Net Weight: ~44 lb (20 kg)

• Gross Weight: ~53 lb (24 kg)

Loading Quantity:

• 40HQ container: 635 units

• 20 ft container: 246 units

Safety Devices:

• Handlebar chest protector

• Adjustable rear shock absorber

Colors available: Pink, black, red, white, blue.
