SRPNT NV6

SRPNT NV6

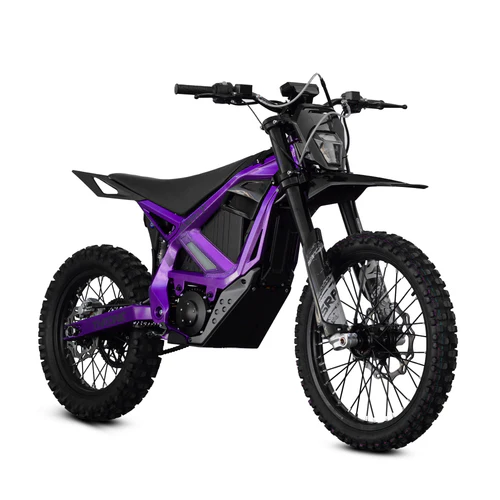

The SRPNT NV6 electric dirt bike delivers raw power with a 35kW motor, 96V battery system, and a top speed of 90 mph — built for serious off-road performance and adrenaline-fueled rides

High-Performance Electric Dirt Bike

Motor

• Power Output: 35 kW

• Mounting Position: Mid-mounted

• Weight / Diameter: 9.55 kg / 155 mm

• Axial Length: 130 mm

• Cooling System: Air-cooled

• Peak Efficiency: 98%

Controller

• Type: FOC (Field-Oriented Control)

• Dimensions: 160 x 142 x 79 mm

• Efficiency: 98.5%

• Riding Modes: Eco / High / Sport

Motor Power System

• Rated Voltage: 96V DC

• Rated Torque / Peak Torque: 95 Nm / 115 Nm

• Shaft Output Torque @ 1000 RPM: >1000 Nm

• Rated Speed: 5400 RPM

• Efficiency Range (≥80%): 3–45 Nm

• Peak System Efficiency: 97%

Transmission

• Gear Ratio: 13:51

• Type: Motorcycle Chain Drive (520 Chain)

• Belt Model: Continental 8M CXA (German Brand)

Electrical System

• Battery: 96V 60Ah LG Lithium Battery

• Battery Life: 500–600 Cycles

• Charger: 12A Fast Charger (4-hour charge time)

• Battery Display: Integrated LCD

• USB Port: Type-C

• Speedometer: TFT Display

• Lighting: LED Headlight & Rear Light

• Horn: CQC Certified

Frame & Suspension

• Frame Material: 6061 T4 & T6 Aluminum Alloy

• Construction Method: Forged under 3000 Tons of Pressure

• Finish: Baked Paint

• Front Suspension: Inverted Fork, 200mm Travel

• Rear Suspension: KKE Linkage System

• Wheels: Front 21″ / Rear 18″

Dimensions & Weight

• Ground Clearance: 310 mm

• Wheelbase: 1410 mm

• Seat Height: 920 mm

• Overall Size: 1880 x 805 x 1130 mm

• Net Weight: 124 kg

• Load Capacity: 320 lbs (145 kg)

Performance

• Top Speed: 145 km/h (90 mph)

• Rear Sprocket: 51T

• Side Stand: Included with Integrated Kill Switch
